When a breaker trips every time the microwave runs at the same time as the coffee maker, or when you add an EV charger, hot tub, welder, or garage deep freezer, tapping into an existing general-purpose room circuit is a recipe for nuisance trips and overheated wiring. Scotty Electric Co. runs clean, dedicated branch circuits from your panel to the exact point of use—sized for continuous load ampacity and voltage drop.
120V & 240V Dedicated Circuits We Install Every Week

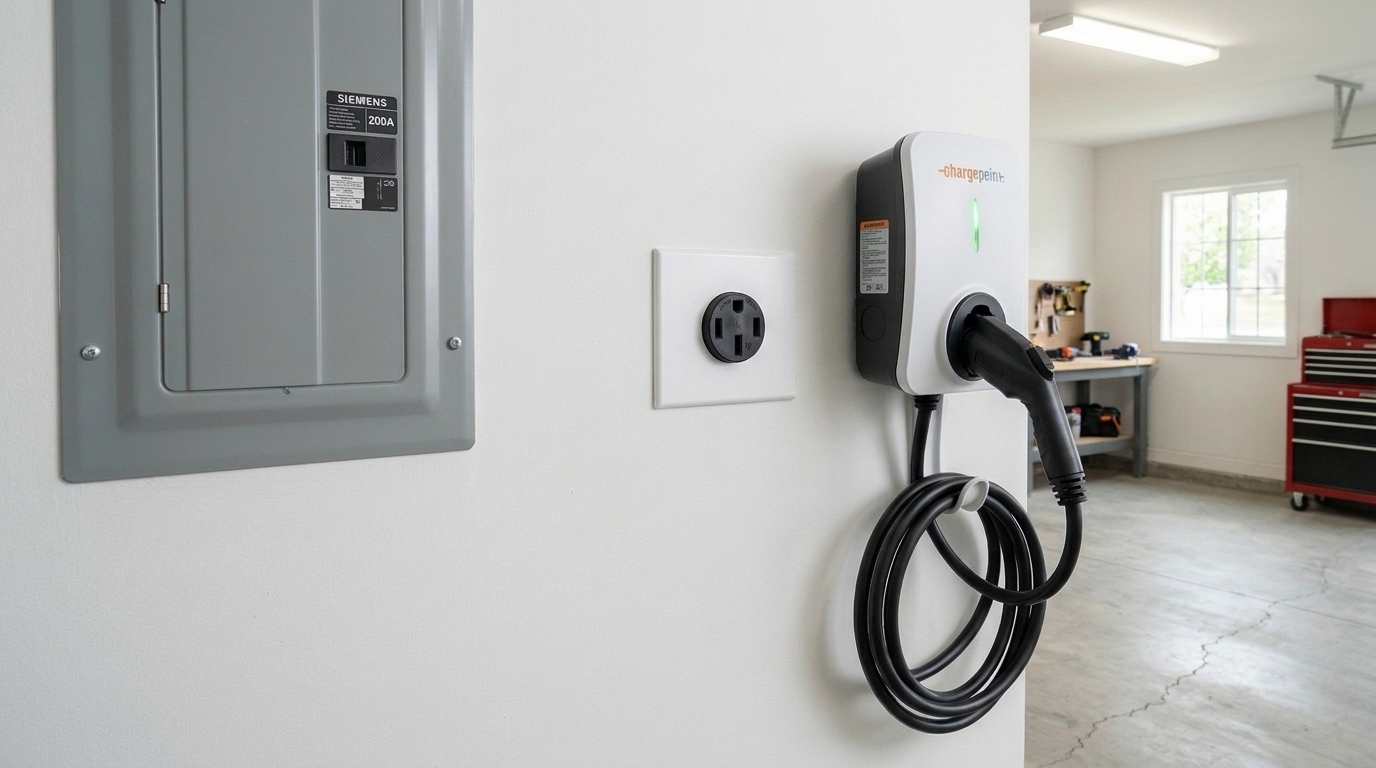

FIELD INSTALLATION EXAMPLE
Many high-draw appliances and tools require their own dedicated circuit so they don't starve other receptacles or exceed the 80% continuous-load limit of a standard breaker. We route new circuits cleanly through attics, crawlspaces, or surface EMT/PVC conduit with minimal wall disruption.
Before adding a heavy 240V circuit (like a 50A/60A Level 2 EV charger or 50A hot tub disconnect), we verify your main panel's available capacity and busbar condition.
- Level 2 EV Charger Circuits (Hardwired 48A/60A or Heavy-Duty Industrial NEMA 14-50 receptacles)
- Hot Tub & Spa GFCI Disconnect Panels (50A/60A with required 5-ft to 10-ft sight-line clearance)
- Garage & Workshop Circuits for welders, air compressors, table saws, and mini-splits
- Dedicated 20A Kitchen, Microwave, Sump Pump, Home Server, and Garage Freezer lines

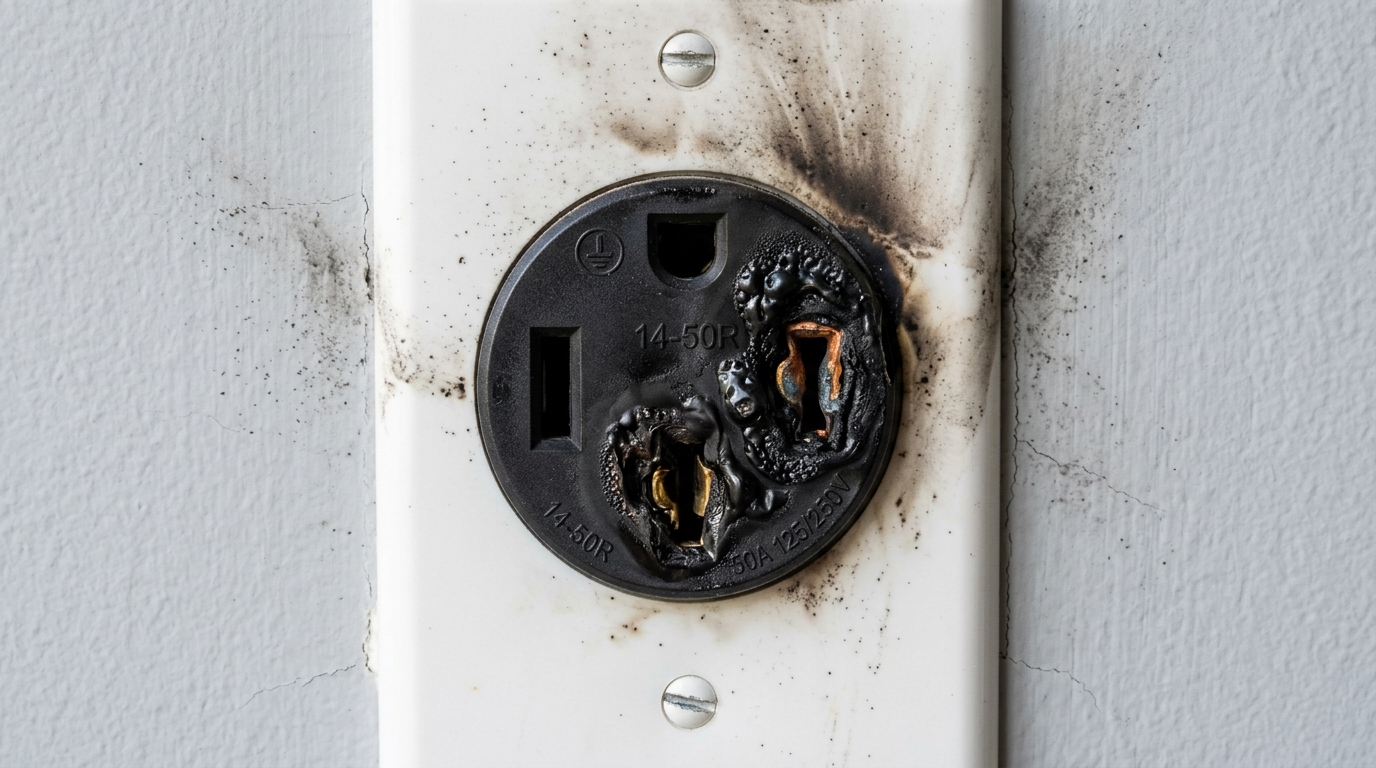

THERMAL FAILURE RISK
Half-width brass contacts and small set-screws overheat when subjected to 40A continuous overnight EV charging.
SCOTTY ELECTRIC STANDARD
Deep-well full-contact brass jaws torqued to specification with 6 AWG copper conductors sized at 125% continuous load.
An electric oven cycles elements on and off, whereas an EV charger draws 40 Amps continuously for 6 to 10 hours straight. Standard residential-grade $12 NEMA 14-50 outlets frequently melt under continuous EV loads. When you request a plug-in EV circuit, we only install heavy-duty industrial-spec receptacles torqued to spec—or hardwire the charger directly.
AFCI, GFCI & Outdoor Weatherproof (In-Use) Protection
Adding a new circuit or extending an existing branch circuit triggers current safety protection rules. Depending on the room and equipment, your new circuit will utilize Arc-Fault Circuit-Interrupter (AFCI) protection, Ground-Fault Circuit-Interrupter (GFCI) protection, or Dual-Function AFCI/GFCI breakers.
For outdoor kitchens, pergolas, and holiday/landscape outlets, we install heavy-duty weather-resistant (WR) receptacles inside extra-duty 'while-in-use' bubble covers so cords stay dry even in driving rain.
TECHNICAL SPECIFICATION
What We Find vs. How We Build It
Why We Do It This Way — Dedicated Circuit & Equipment Code Items
Here are the primary code articles that govern how new 120V and 240V circuits are sized and protected:
Required Dedicated Branch Circuits & Fastened-in-Place Loads
Requires dedicated 20-amp branch circuits for kitchen small appliances, laundry receptacles, bathroom receptacles, and garage receptacles—and prohibits fastened-in-place appliances (like dishwashers, disposals, or built-in microwaves) from exceeding 50% of a shared multi-outlet branch circuit rating.
Stops nuisance breaker trips when multiple appliances run simultaneously and prevents chronic overheating of neutral conductors.
EV Charging Continuous Load (125% Sizing) & Dedicated Circuit Rule
Each outlet installed for the purpose of charging electric vehicles must be supplied by an individual branch circuit with no other outlets, and the conductors and breaker must be sized at a minimum of 125% of the maximum continuous EVSE load (e.g., a 48A charger requires a 60A circuit).
Prevents breaker thermal fatigue and melted wire insulation during overnight multi-hour charging sessions.
Hot Tub & Spa GFCI Maintenance Disconnect (5 ft to 50 ft Sight-Line)
Hot tubs and spas require a GFCI-protected disconnecting means located readily accessible, within sight of the spa, and at least 5 feet horizontally away from the inside wall of the water.
Ensures a person standing in the water cannot touch the electrical disconnect box, while keeping emergency shutoff right in sight.
GFCI Personnel Protection & AFCI Arc-Fault Fire Protection
GFCI protection monitors for 4–6 milliamps of current leaking through a person to ground in garages, outdoors, kitchens, baths, and 240V outlets; AFCI protection monitors the circuit waveform for dangerous series or parallel arcing inside walls.
Combines shock prevention in damp/grounded areas with fire prevention in living spaces.
